Elex MK4 new

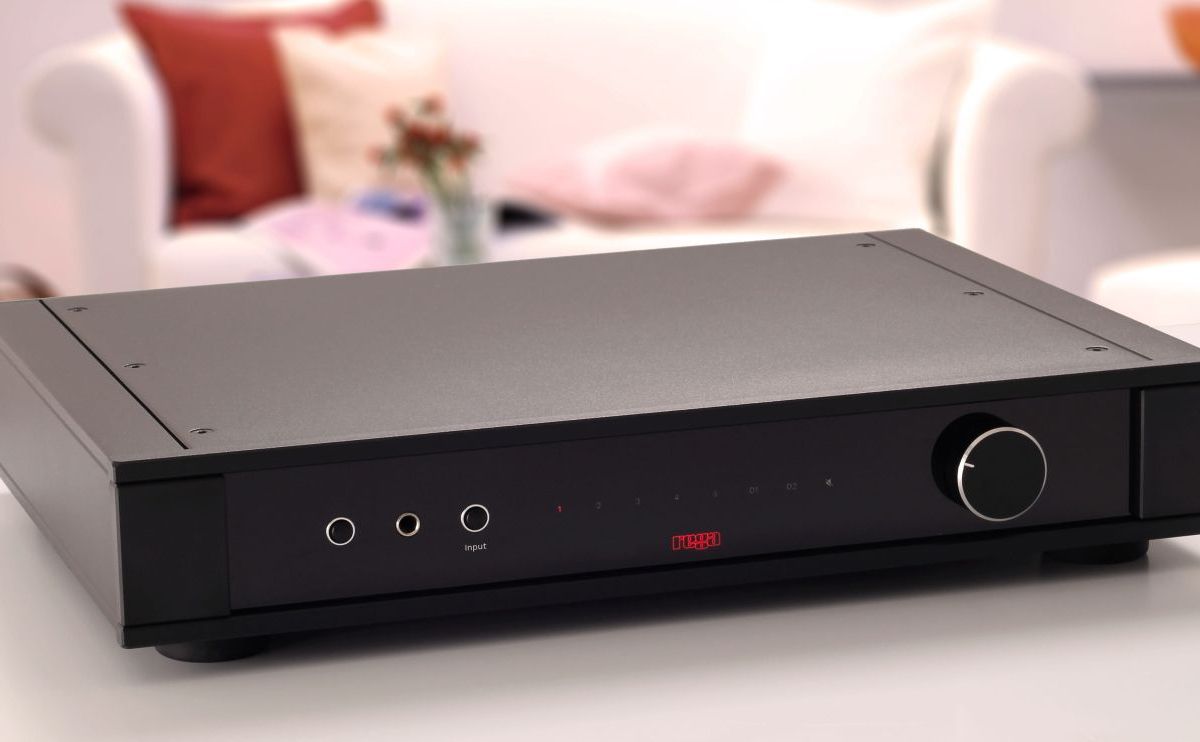

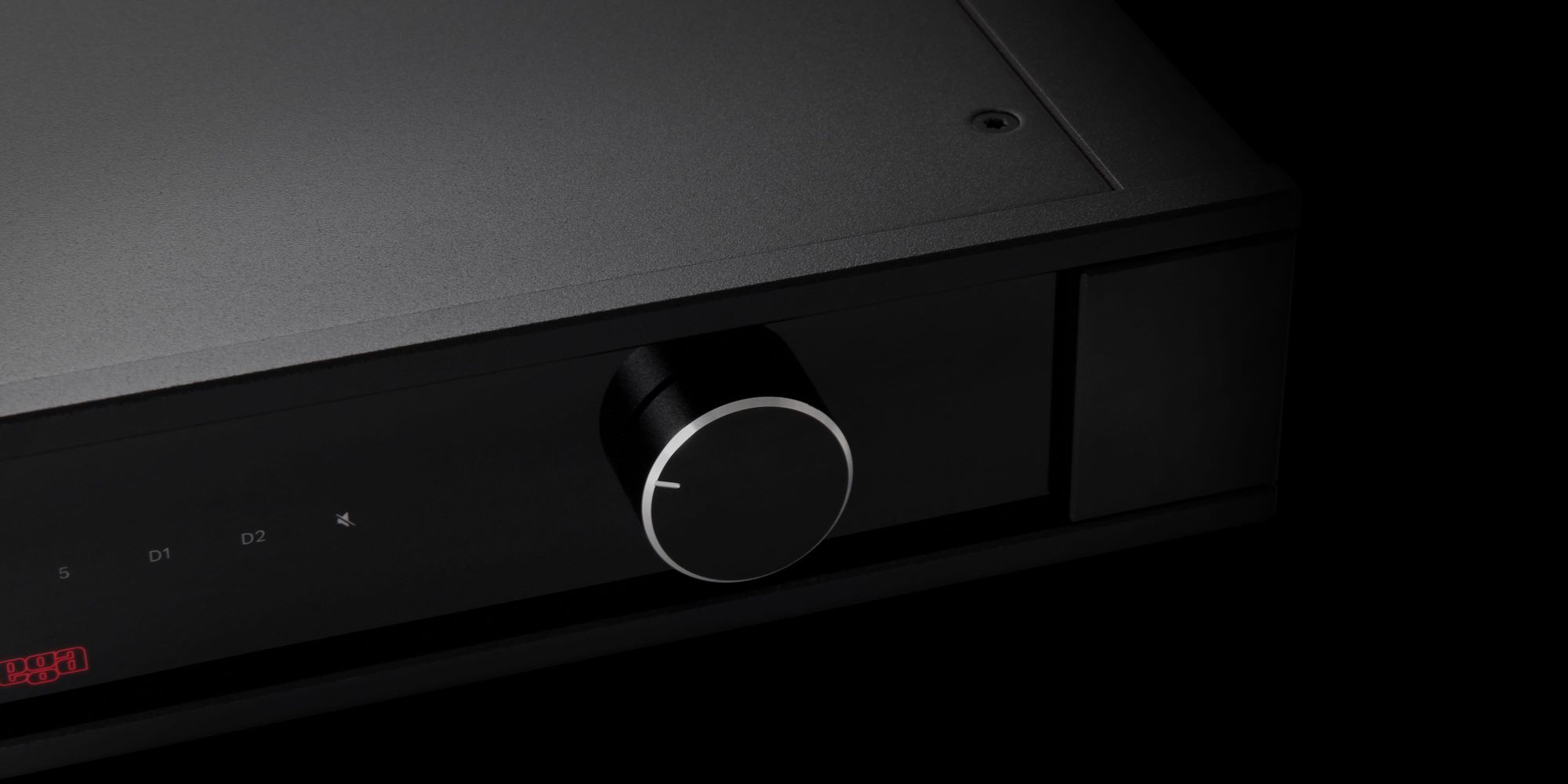

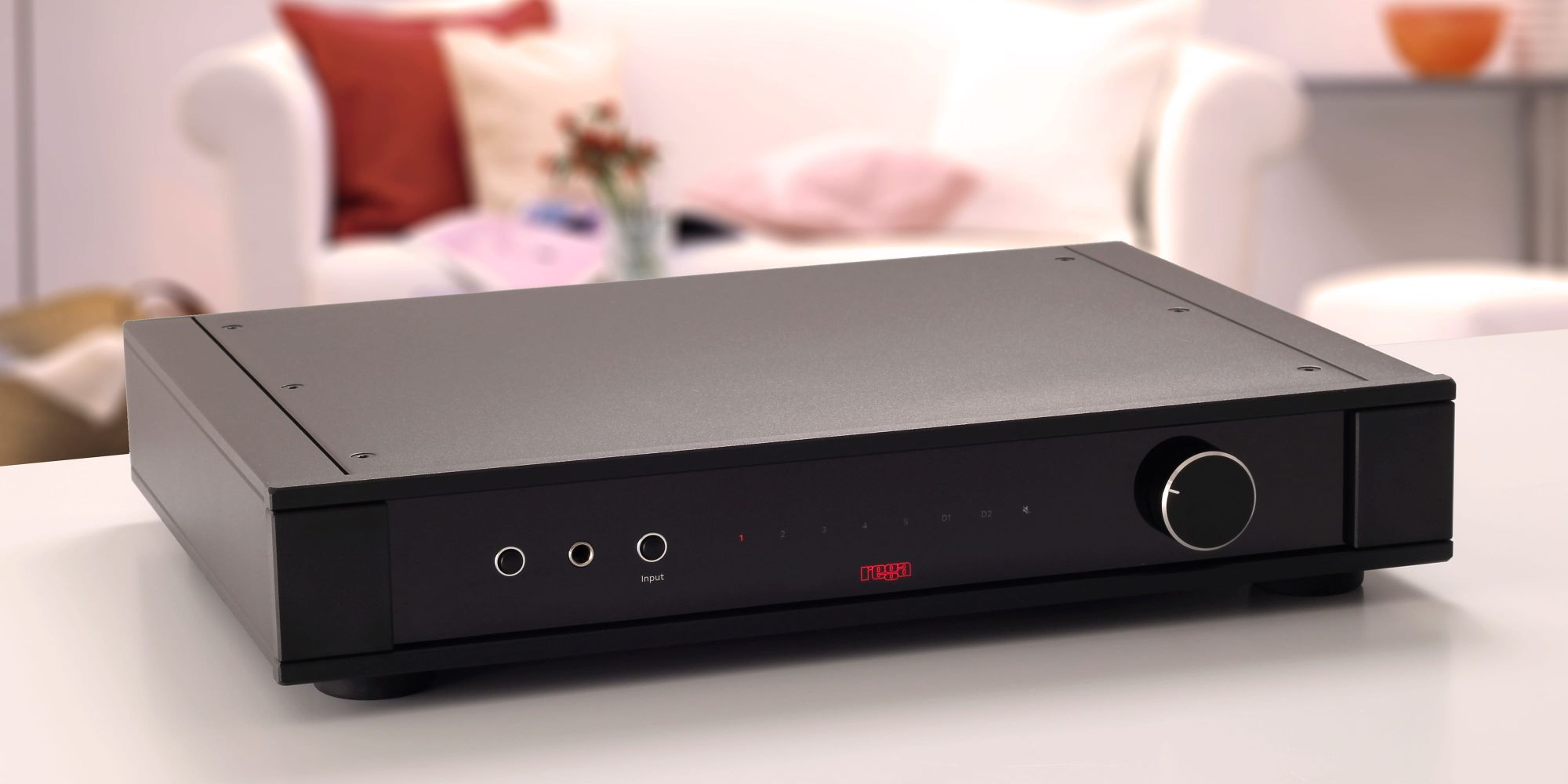

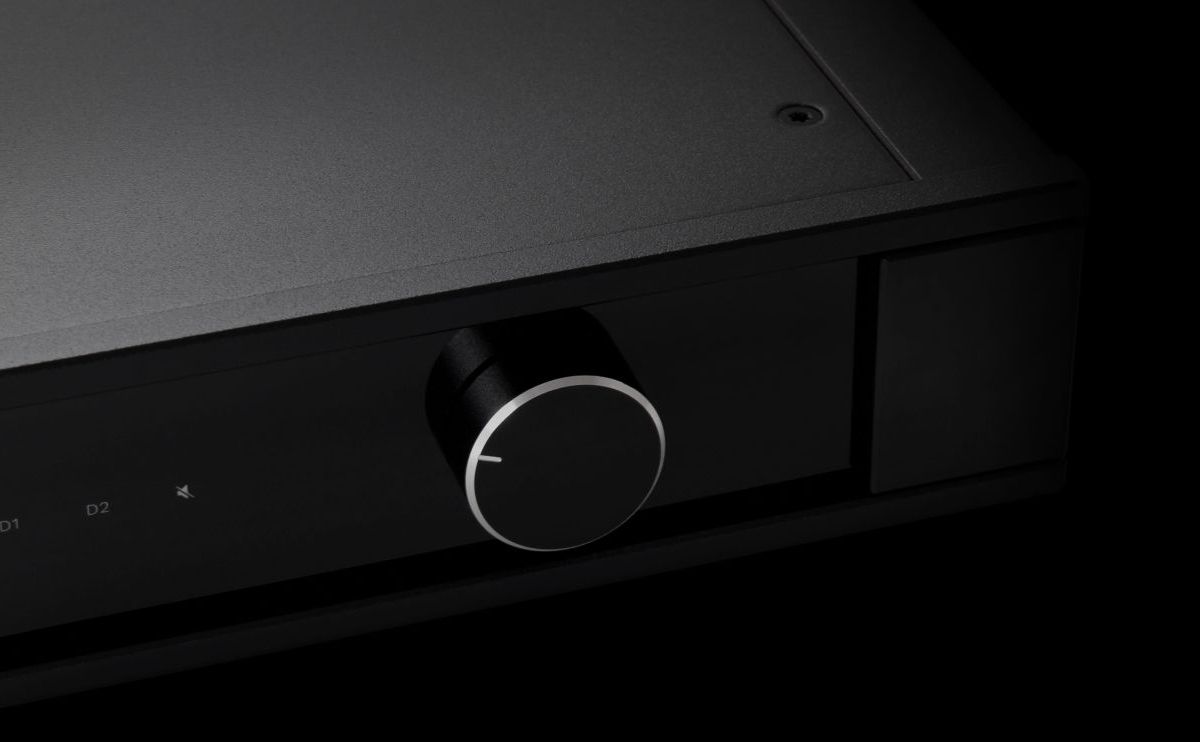

The Elex MK4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex MK4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.
Bringing your music to life
The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage, you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.
Key Features
- 72 W per channel into 8 Ω / 90 W into 6 Ω
- High quality moving magnet phono stage
- High performance Rega DAC circuit for digital inputs
- 2 x Digital inputs - 1 x optical and 1 x Co-Axial
- Headphone output
- 4 Line level inputs
- New custom design case
- Thermal Cut-Out
- Lifetime warranty against manufacture defects
Product Details
-
Amplification circuit
Our engineers have re-engineered the entire ELEX circuit board to optimise performance. MK4 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 72W per channel into 8Ω loads. This power is provided by a quiet multi-stage linear supply whilst supply rails for digital and analogue sections are galvanically isolated.
-
Digital Circuit / DAC
The DAC is based closely on the hugely successful Rega DAC-R circuit. The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. Our engineers have worked exceptionally hard to ensure that the analogue side of the circuit is not affected in any way by the introduction of digital inputs.
-
MM Phono Stage
A high performance Rega designed integrated moving magnet (MM) phono stage is carefully built into the circuit. The RIAA equalization has been split into two stages to minimise interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.
-
Headphone Output
We have taken great care to incorporate the headphone socket on the Elex MK4. This has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path ensuring no loss of performance when it is not in use.
-
Custom Case

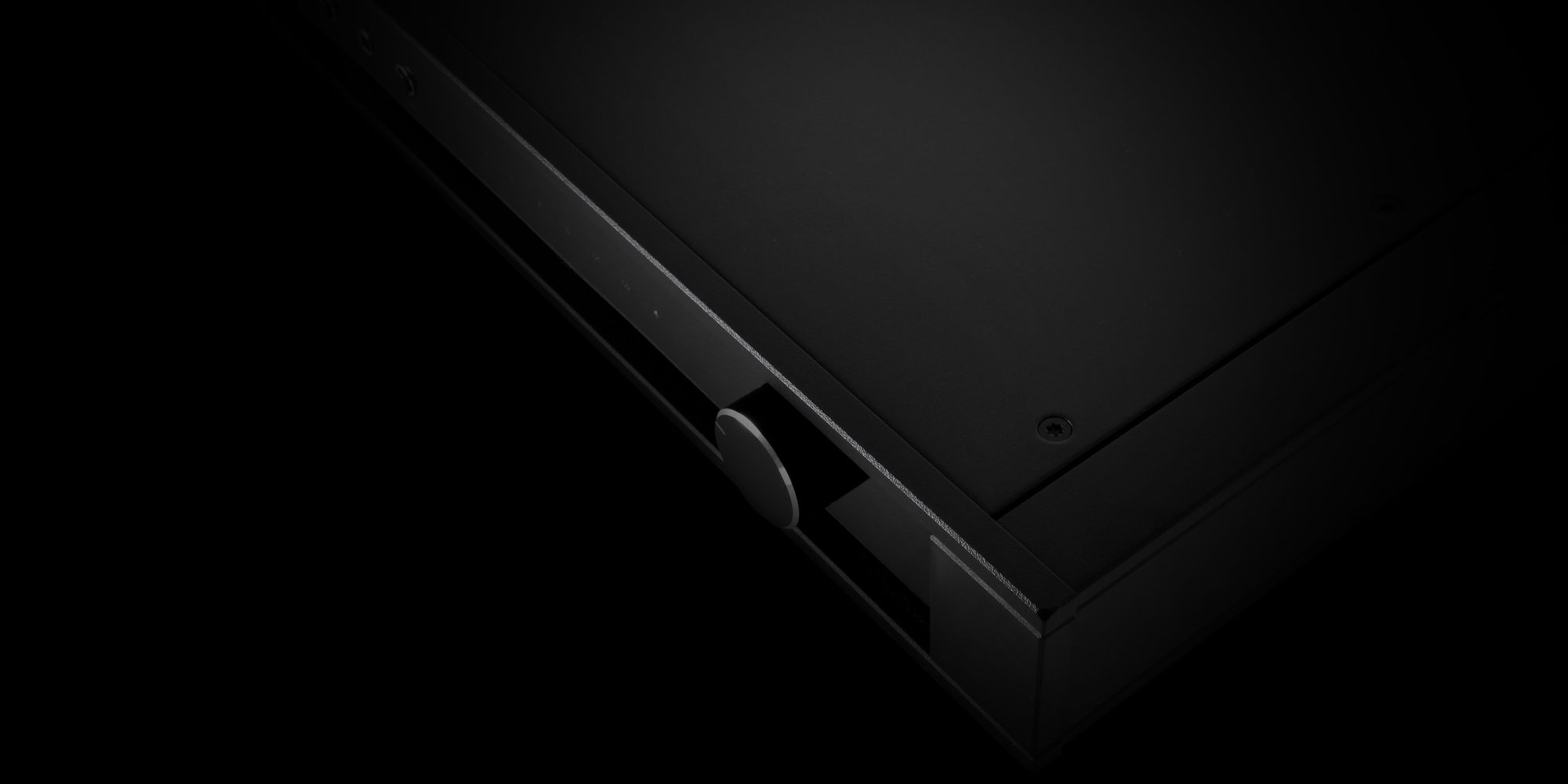

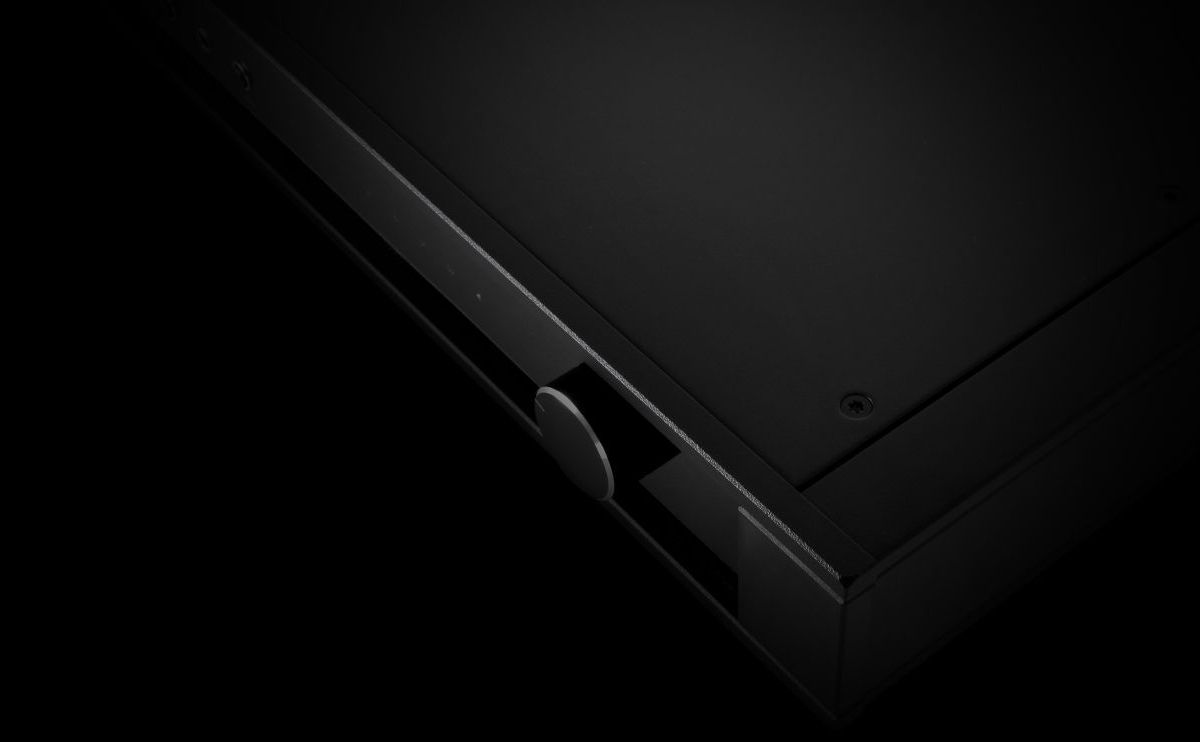

The new custom case design and construction brings the Elex MK4 inline with the rest of the Rega range and provides improved heat dissipation by using the entire case as an ultra efficient heat sink.
-
Protection
The Elex MK4 includes Thermal Cut-Out, short circuit protection and DC protection to prevent the risk of damage from excess heat, excessive currents or short circuits.
Technical Specifications
- Power Amplifier Output (at rated 230/115 V Supply voltage)
72 W into 8 Ω
90 W into 6 Ω- Dimensions (W × H × D)
432 x 82 x 340 (D includes loudspeaker terminals)
- Weight
11 Kg
- Supported Sampling Rates
32, 44.1, 48, 88.2, 96, 176.4, 192kHz
- Supported Bit Depths
16 to 24 bit
- Power Consumption
250 W at 1dB below clip into 8Ω
- Output Sensitivity (at rated inputs)
Record Output 164mV
Pre-amplifier Output 625mV
For full technical specifications, download ELEX MK4 user manual below.
Downloads
- ELEX MK4 user manual 371KB pdf
- ELEX MK4 multilingual user manual 1.2MB pdf
Environmental Labelling of Packaging
There’s no other amplifier I’ve tested recently at the price that offers the imperious ability of the Elex Mk4. The latest refreshed Rega therefore has to be seen as a Best in Class.
Complementary Components
- RB110 tonearm
- Carbon cartridge fitted
- Phenolic resin platter
- 24 V low noise motor
- Low mass plinth
- Clear dust cover
- Advanced EBLT drive belt
- RB220 tonearm
- Rega Carbon cartridge fitted
- New Walnut effect finish for 2022
- 10 mm glass platter
- 24 V low noise motor
- Three high gloss acrylic skin finishes
- Clear dust cover
- Advanced EBLT drive belt
- RB330 tonearm
- Elys 2 (optional)
- 12 mm opti-white polished glass platter
- Double brace technology
- 24 V low noise motor
- Compatible with Neo power supply
- Clear dust cover
- Advanced EBLT drive belt
- RB330 tonearm
- Exact, Ania or Ania Pro (optional)
- 16 mm Dual layer float glass platter
- Double brace technology
- Tancast 8 foamcore plinth
- Custom matched Neo PSU
- Smoked dust cover
- Reference EBLT drive belt

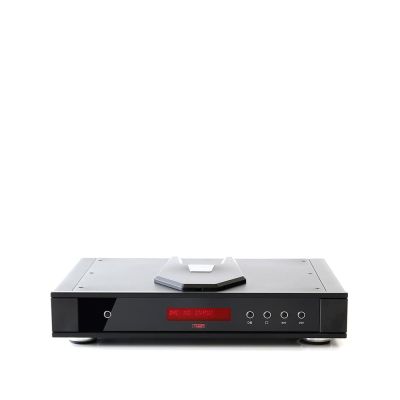

- CD player & 24bit 192 kHz DAC
