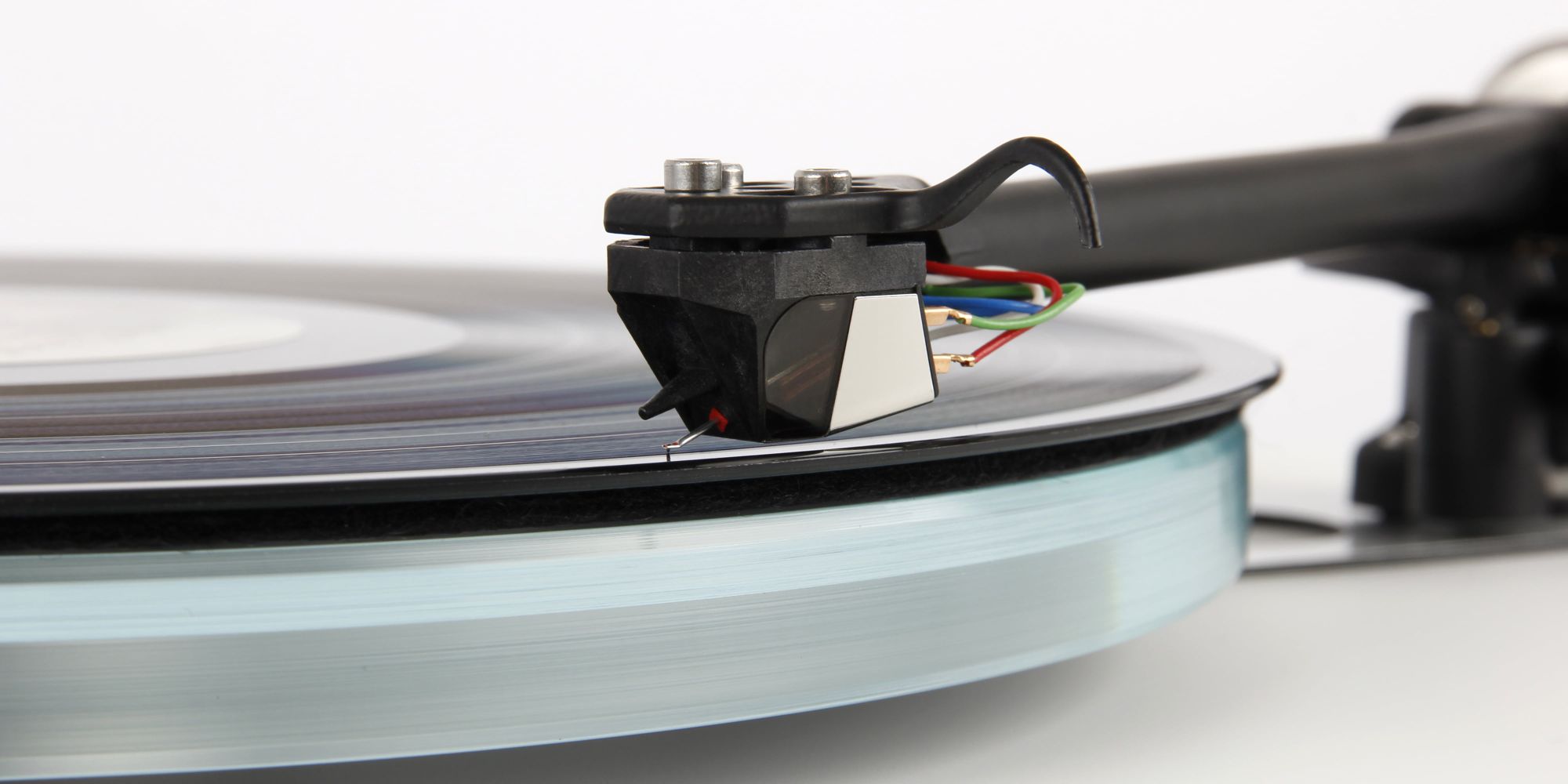

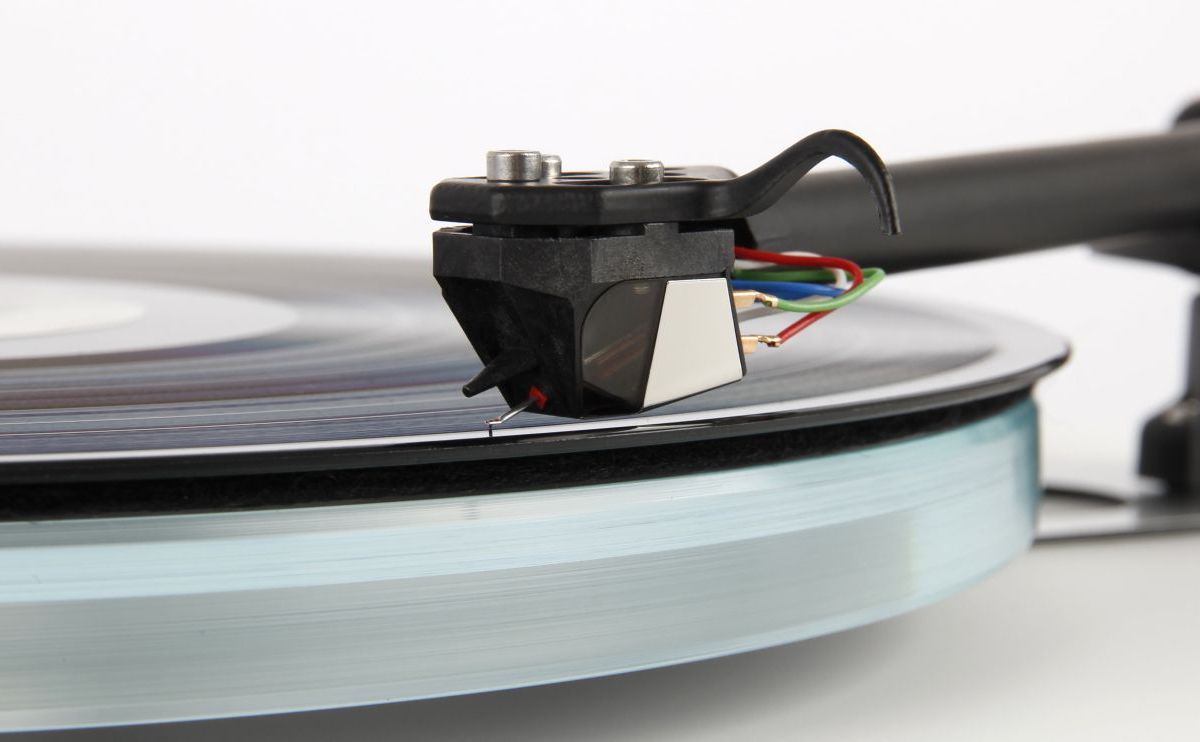

Nd5 new

The all new Nd5 moving magnet cartridge was developed over 10 years and promises to deliver ‘next level’ performance from moving magnet technology. The Nd range (patent pending) is a world first to use an ultra-high powered Neodymium magnet which allow us to create this totally unique design.


Advanced Moving Magnet

Each Nd5 is meticulously hand-made by our highly skilled technicians. The stylus profile is a perfect elliptical nude diamond. This is a true ellipse created by an elliptical grinding process made from polycrystalline manmade diamond. The design uses brand new generator geometry with perfect symmetry to achieve accurate channel balance. The Nd5 also has an optimised pole gap for superior linearity and cross talk characteristics. This provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with our commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

Key Features

  • Perfect elliptical nude diamond profile stylus
  • Aluminium cantilever
  • Neodymium magnet
  • Unique generator
  • Rega 3 point mounting system
  • Highly rigid lightweight PPS body
  • Handmade stereo cartridge
  • 100% recyclable packaging
  • Lifetime warranty against manufacture defects

Nd Magnet technology
Often used in Moving Coil designs (including our own), we believe the Nd5 is the first moving magnet cartridge to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering more power than standard bar magnet design.

Glass filled PPS body
The complete assembly is housed in our zero tolerance injection moulded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by our hugely successful MC range.

Cantilever & stylus profile
The Nd5 aluminium cantilever is fitted with a precision perfect elliptical nude diamond stylus. This profile provides exceptional tracking accuracy and extracts greater levels of detail from the vinyl surface.

Factory Fitted options

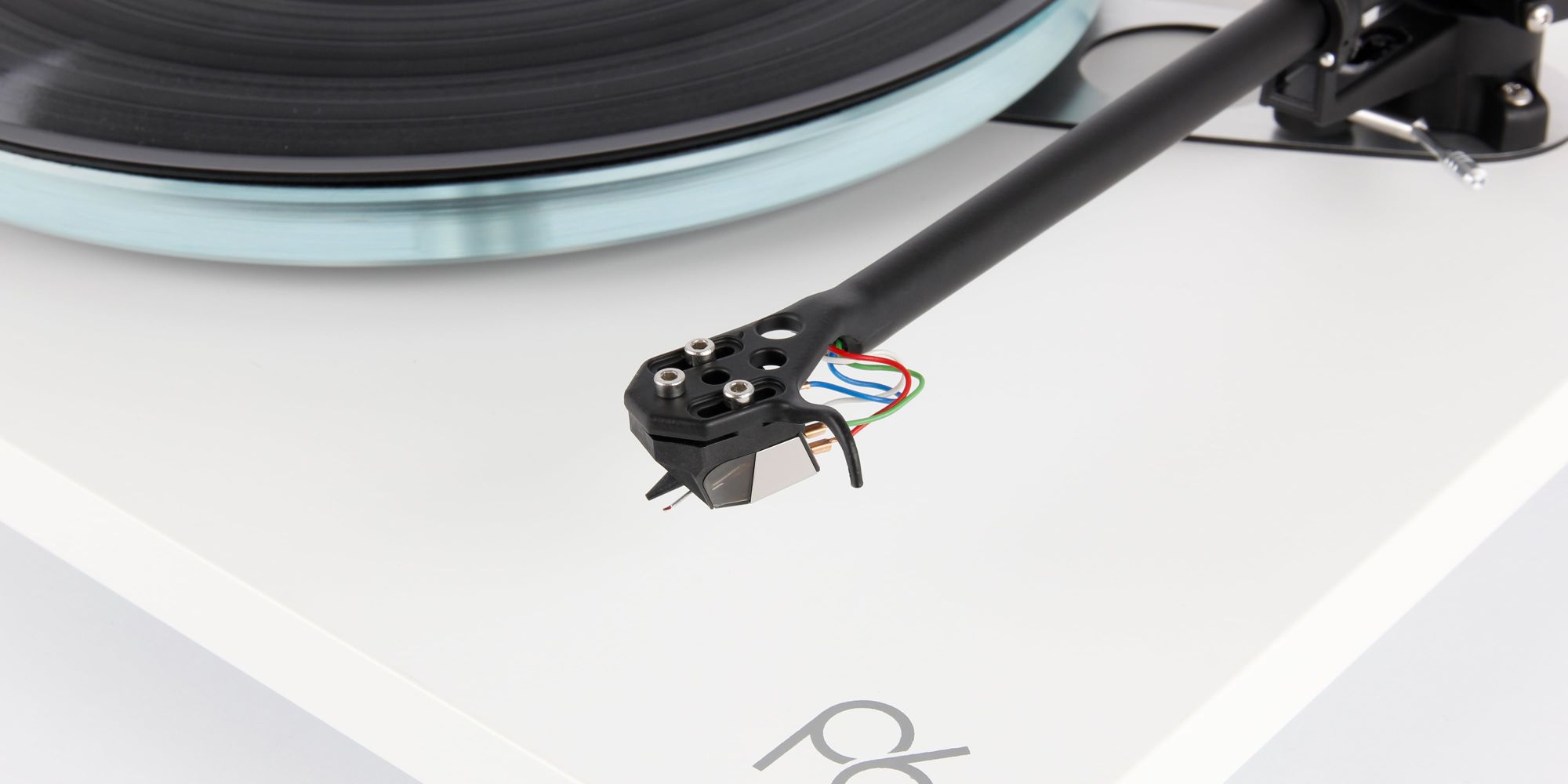

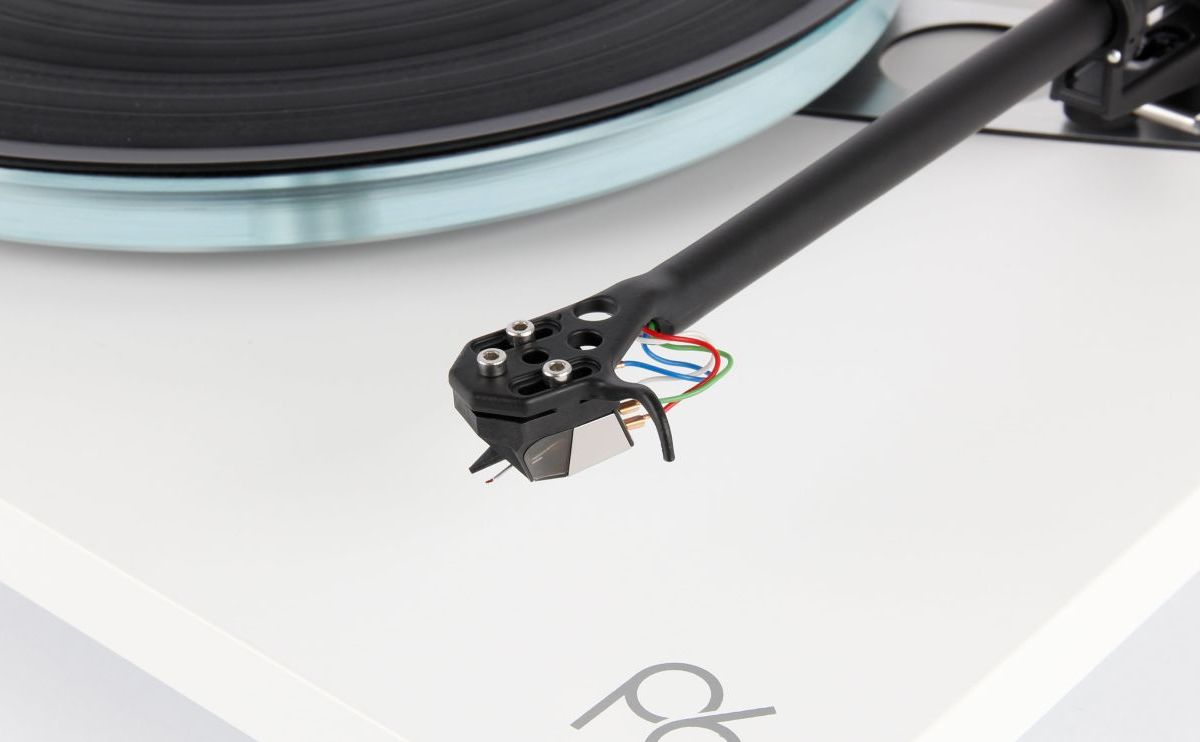

The Nd5 cartridge will be offered as a factory fitted option on the multi-award winning Planar 3 and Planar 6 turntable models. Designed specifically with these turntables in mind, the Nd5 promises to extract the very best from your vinyl collection. The factory fitted packages are offered at a discounted rate compared to when purchased separately. Ask your Rega dealer for details.

Rega rebuild scheme
The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves tracking ability and stability of the stylus. If you should damage or wear out your Rega cartridge, simply return it to you Rega dealer and they will supply you with a rebuild cartridge fitted with a new cantilever, stylus and pivot pad. Each rebuild is fully tested as a new cartridge would be. The rebuild is sold at a reduced price once you trade in your worn or damaged cartridge that is equivalent to a replacement stylus offered by other manufacturers.

Nd5 icon

Technical Specifications

Nominal Output Voltage

5-6mV

Stylus

Perfect elliptical nude diamond

Fixing

3 point fixing

Coils

Miniaturised parallel coils

Window Colour

Clear smoked

Tracking pressure

1.75g

For full technical specifications, download Nd cartridge mounting instructions below.

Downloads

Environmental Labelling of Packaging

In many respects Rega have proved that you don’t need to spend a fortune to get high quality results with vinyl, all you need are the records. I thought I had enough of them but this cartridge makes it clear that all the stuff I love on digital could sound better.

Jason Kennedy - Editor of The-Ear.net

Complementary Components

Rega Planar 3 Turntable

  • RB330 tonearm
  • Elys 2 (optional)
  • 12 mm opti-white polished glass platter
  • Double brace technology
  • 24 V low noise motor
  • Compatible with Neo power supply
  • Clear dust cover
  • Advanced EBLT drive belt

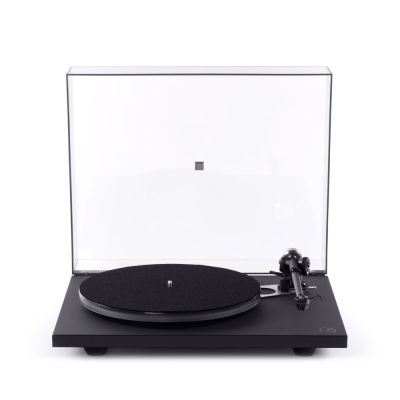

Rega Planar 6 Turntable

  • RB330 tonearm
  • Exact, Ania or Ania Pro (optional)
  • 16 mm Dual layer float glass platter
  • Double brace technology
  • Tancast 8 foamcore plinth
  • Custom matched Neo PSU
  • Smoked dust cover
  • Reference EBLT drive belt

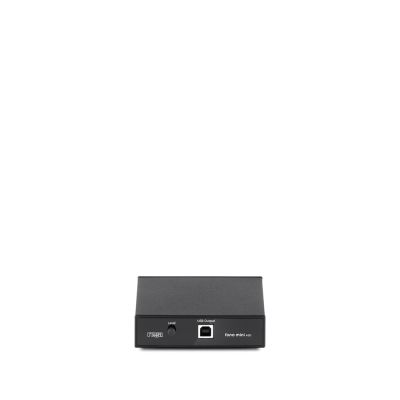

Rega Fono Mini A2D MM Phono Stage

  • Dedicated Moving magnet phono stage
  • Compatible with all MM cartridges
  • USB output
  • A2D functionality
  • User friendly front and back panels
  • Custom design case

  • Dedicated Moving Magnet phono stage
  • Compatible with all MM cartridges
  • Simple connectivity and operation
  • Custom design case
  • Multi Award winning phono stage

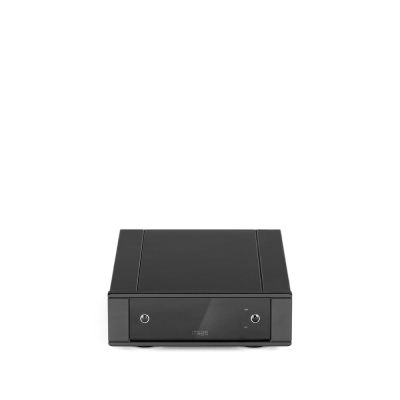

Rega Aria MK3 MM MC Phono Stage
