Current: Atlas Tracking Force Gauge MK2

Atlas MK2

The Rega Atlas Tracking Force Gauge MK2 is designed to be easy to use, consistent and exceptionally accurate. Our engineers have meticulously selected each component to offer the highest possible performance.

The advanced EBLT drive belt is fitted as standard to all Planar 1, Planar 1 Plus, Planar 2, Planar 3 and Planar 6 models.

Each belt is moulded on our highly accurate custom tooling using a unique secret blend. Once moulded, the belts are cryogenically frozen and barrelled to remove any excess flash in order to create perfect cross sectional roundness which is critical for accurate speed and stability. In normal use and conditions, the lifespan of the EBLT drive belt is 50% longer than the previous model.

Below you can see a direct comparison taken from our custom test software. You can compare the old belt (top) versus the latest EBLT reference belt (bottom). We have used the same Planar 1 turntable. The only part that has changed is the drive belt. You can clearly see a notable reduction in weighted peak Wow / Flutter measurements produced by the increased accuracy and cross sectional roundness of the EBLT belt. The standard belt measures 0.253% / the Advanced EBLT measures 0.162% and the Reference EBLT measures 0.075%

Rega drive belt comparison
Rega drive belt comparison






The loadcell is a premium full bridge, shear beam construction. The cell is temperature compensated for a wide range of operating temperatures and is extremely resilient to shocks and deterioration over time.

The intelligent design of the Atlas ensures the tracking force is measured in the same place every time allowing for very fine adjustment to two decimal places.

Current: Atlas Tracking Force Gauge MK2
Atlas MK2

Technical Specifications

Accuracy
+/-0.01 grams
Range
0.5 - 10 grams
Safe Overload
20 grams
Supply
9V PP3 cell

Product Downloads


Complementary Components

Rega Planar 10 Turntable

  • RB3000 tonearm
  • Apheta 3 or Aphelion 2 (optional)
  • 18 mm Ceramic Oxide diamond cut platter
  • DB technology with ceramic top brace
  • Tancast 8 foamcore plinth
  • P10 Advanced PSU
  • Custom designed smoked dust cover
  • Advanced EBLT drive belt
Rega Planar 2 Turntable

  • RB220 tonearm
  • Rega Carbon cartridge fitted
  • 10 mm glass platter
  • 24 V low noise motor
  • Three high gloss acrylic skin finishes
  • Clear dust cover
  • Advanced EBLT drive belt
Rega Planar 3 Turntable

  • RB330 tonearm
  • Elys 2 (optional)
  • 12 mm opti-white polished glass platter
  • Double brace technology
  • 24 V low noise motor
  • Compatible with Neo power supply
  • Clear dust cover
  • Advanced EBLT drive belt
Rega Planar 6 Turntable

  • RB330 tonearm
  • Exact, Ania or Ania Pro (optional)
  • 16 mm Dual layer float glass platter
  • Double brace technology
  • Tancast 8 foamcore plinth
  • Custom matched Neo PSU
  • Smoked dust cover
  • Advanced EBLT drive belt

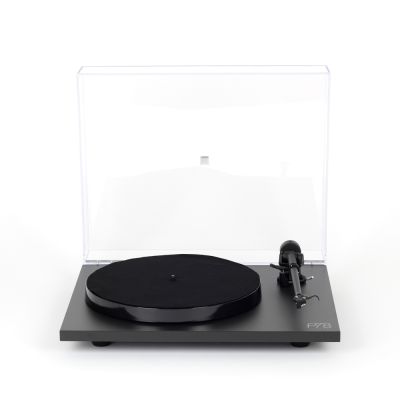

Rega Planar 78 Turntable
