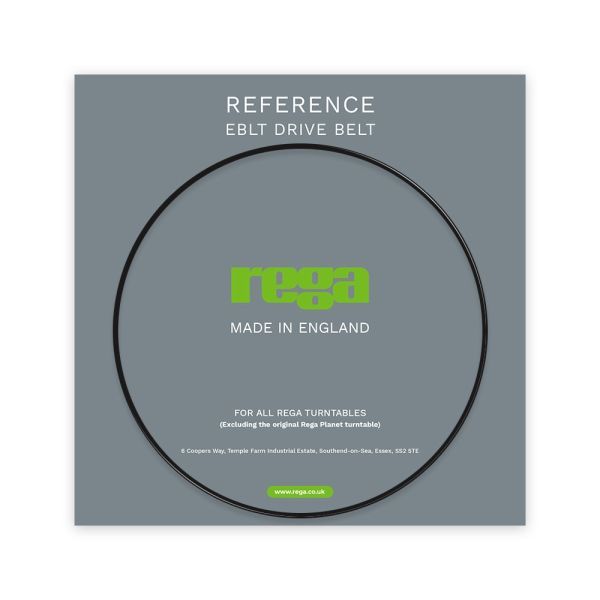

Reference EBLT Upgrade Drive Belt

Custom made premium Reference EBLT drive belt. Fitted as standard to all Planar 8 and Planar 10 turntable models from March 8th 2021.

The Rega Reference EBLT drive belt is the culmination of many years of R&D and advanced tooling trials. The most accurate drive belt we have ever produced, the Reference EBLT is now fitted as standard to all Planar 8 and Planar 10 turntable models as standard. The Reference belt is suitable for all Rega turntables but highly recommended for the Planar 6 and any Planar 3 using the Rega Neo TT PSU.

Each belt is moulded on our highly accurate custom tooling using a unique secret blend. Once moulded, the belts are cryogenically frozen and barrelled to remove any excess flash in order to create perfect cross sectional roundness which is critical for accurate speed and stability. In normal use and conditions, the lifespan of the EBLT drive belt is 50% longer than the previous model. All Reference belts go through a unique curing process which guarantees the highest achievable level of accuracy.

Below you can see a direct comparison taken from our custom test software. You can compare the old belt (top) versus the latest EBLT reference belt (bottom). We have used the same Planar 1 turntable. The only part that has changed is the drive belt. You can clearly see a notable reduction in weighted peak Wow / Flutter measurements produced by the increased accuracy and cross sectional roundness of the EBLT belt. The standard belt measures 0.253% / the Advanced EBLT measures 0.162% and the Reference EBLT measures 0.075%

Rega drive belt comparison
Rega drive belt comparison
Reference EBLT Upgrade Drive Belt

Technical Specifications

Rega Drive Belt
Reference EBLT monomer
Diameter / cross sectional roundness
Improved stability / Speed accuracy
Lifespan
50% longer lifespan than a polychloroprene belt
Advanced curing process
Improved consistency in modulus of material
